House Kit | Granny Flat 59sqm

45% Discount available! Was $87,900 , now only for $48,345!!!

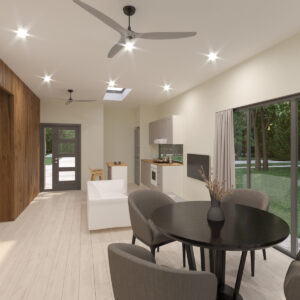

Please note that the following images of the finished house are for demonstration only, for the sale of the house kit, we supply the CLT panel frame, fasteners, windows and doors. Please refer to the description and brochure to find out more!

📞 Call us: 0447 764 768 📧 Email us: uk.oxleytrade.com.au@gmail.com

Total area house kit  (m2)    – 59,94

Building area (m2)             –  80,54

Volume of CLT panels (m3)  – 33,14

Terrace area (m2)              –  20,56

Dimensions house kit  (m)  –  6,890 х 11,685

The weight of a set of CLT panels is (tons) –  11,930

Dimensions CLT panel – 100 mm x 2900 mm x 3200 mm.

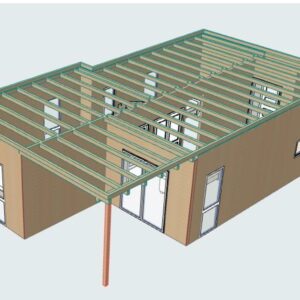

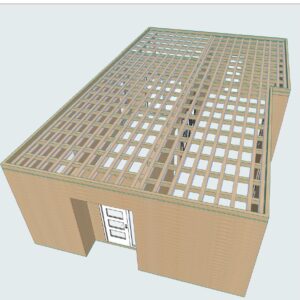

TECHNICAL INFORMATION:  Complete structural frame

• Made from large-format Cross Laminated Timber panels.  (wood grade A / A).
  The panels are pre-cut with window and door openings. Cuts are made for fasteners and joinings.
•  CLT outer walls consist of 5 layers.
• Internal CLT walls are composed of 5 layers.

Complete facade glazing.

• PVC double glazed window set, shock-resistant, noise-insulating, energy-saving.
• The thickness of the glass is 32 mm. Glass unit: 4 M1, hardened 4 M1.
•  Windows and entrance door from aluminum 40-70 mm.

RANNY FLAT KIT INCLUSIONS:

 1 x pallete of a laminate (Colour of your choice)

 1 x pallete of Oriented Strand Board (OSB)

 2 x pallete of Flexible shingle Tegola Top Shingle Premier

    Cross Laminated Timber comprises of machine graded, kiln-dried softwood, finger jointed, dressed and arranged in multiple layers (lamellas) . Alternating layers are laid perpendicular to each other, and each layer is glued along the face and edges of each lamella before being cured under pressure to form one solid rectangular panel (or billet). Individual building elements are then digitally placed and cut from the billet using CNC technology which includes a combination of saws, routers and mills.

The layup of the panels, combined with the digital fabrication, offer a strong, rigid and dimensionally stable and highly accurate building product that offers versatility for designers. The demand for lower carbon emitting buildings, with increased thermal performance and reduced labour costs, makes engineered wood products like CLT a popular building solution.

After the construction of the building, you can immediately begin to finish the facade and interior finishing work. Ideally smooth walls do not need rough plaster, and routes have been prepared for all communications.
